Metal IBR Roofing Sheet Cold Roll Forming Machine

Wuxi Techwell Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Metal IBR Roofing Sheet Cold Roll Forming Machine

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RWM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Contact Now


13 - 20 Forming Station Metal IBR Roofing Sheet Roll Forming Machine


Main Specifications of IBR Roofing Sheet Roll Forming Machine


Coil Material

Thickness0.3-0.8mm
Coil width925mm or custom-made
Yield Strength250-350Mpa
MaterialPPGI, Color Steel,
Decoiler / UncoilerCoil Width1250mm
I.D508-610mm
O.DMax. 1500mm
Roll Forming MachineForming Stations18 Stations ( Depend on Profiles )
Roller material45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft76mm
Shaft materialHigh grade 45# steel
Drive typeChain transmission
Forming speed0-15m/min
Main power5.5KW
CuttingCutting typeHydraulic cutting
Cutting power3KW
Cutting Tolerance10m+/-1.5mm
EncoderOMRON Brand
Electrical controlPLCPANASONIC Brand or Custom-made
InverterYASKAWA Brand or Custom-made
Touch screenMCGS Brand or Custom-made
Operation typeTouch screen & Button
Hydraulic StationHydraulic stationFamous Chinese brand
Runout TableTable typeSimple nonpower type
FunctionTo support the finished panels

Main Components


Decoiler / Uncoiler1 Unit
Feeding Guide1 Unit
Main Roll Forming Machine1 Unit
Hydraulic Cutting Device1 Unit
Hydraulic Station1 Unit
PLC Computer Control Board1 Unit
Runout Table2 Units

Working Flow


Decoiler ---> Feeding ---> Roll Forming ---> Cut To Length ---> Run out Table

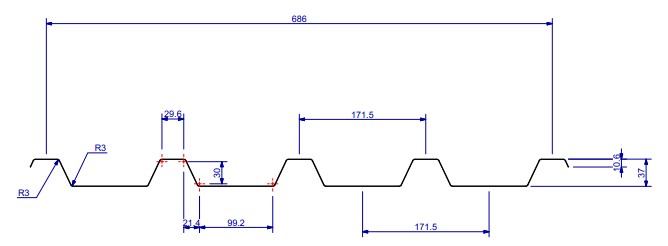

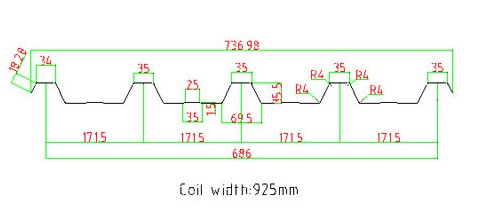

Reference Drawings



Applications


Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding


Our Advantage


  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience


Machine Pictures




Certificate
